Temperature Meter

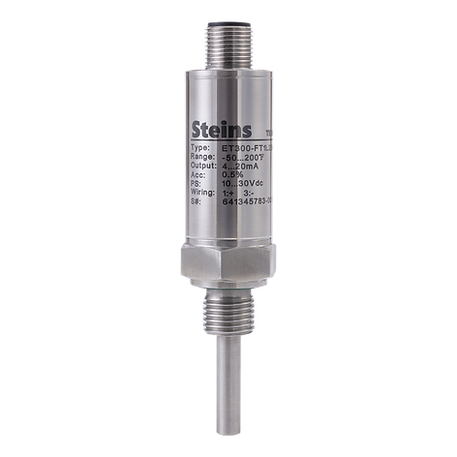

ET300 - General

Compact design

Temperature up to 390 °F / 200°C

4...20mA output

Highly customized

economy temperature sensor
temperature
Introduction

The ET300 features a PT1000 sensor and a transmitter. The PT1000 detects medium temperature changes, which the transmitter then converts into standard industrial output signals. With its robust, all-metal construction, standard 4...20mA output, and extensive connection options, the ET300 is ideal for a wide variety of industrial applications.

Features

Compact design

​

Cost efficiency​

​

4...20mA output

​

Customization available

​

M12 or DIN connector

Specifications
Measuring range

See datasheet for details

​

Accuracy

0.5% of full span

​

Output
4…20mA

​​

Wetted parts material

Stainless steel 316L

​​

Wiring protection

Reverse polarity, Over-voltage

​

Electrical connection
M12 x 1 or DIN​​
Applications

HVAC​

​

hydraulic and pneumatic

​​

Food and Beverage ​

​​

Oil and gas

​

Steel mill

​​

Power plant

Download
